海雄注塑機
|
產品規格 |
單位 |

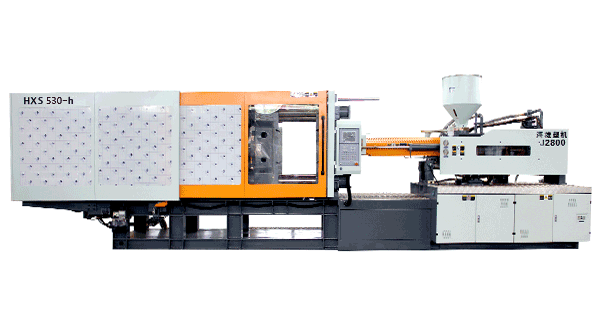

HXS/h530 |
|||||
|
注射裝置Injection Unit |
A組A |
A組B |
A組C |
B組A |
B組B |
B組C |
|
|
螺桿直徑Screw diameter |
Mm |
75 |
80 |
85 |
60 |
65 |
70 |
|
螺桿長徑比Screw L/D ratio |
L/D |
21.3 |
20 |
18.8 |
22.7 |
21 |
19.5 |
|
理論注射容積Injection capacity in theory |
cm3 |
1634 |
1860 |
2099 |
905 |
1062 |
1232 |
|
注射重量Injection weight（ps） |
g |
1495 |
1701 |
1921 |
841 |
988 |
1145 |
|
oz |
52.7 |
60.0 |
67.7 |
29.6 |
34.8 |
40.4 |
|
|
注射壓力Injection pressure |
MPa |
191 |
168 |
148 |
190 |
162 |
140 |
|
注射速率Injection velocity |
mm/s |
382 |
435 |
491 |
258 |
300 |
348 |
|
塑化能力?Plasticizing capacity |
g/s |
52 |
57 |
62 |
40 |
48 |
57 |
|
螺桿轉速?Screw speed |
rpm |
150 |
180 |
||||
|
合模裝置Clamping Unit |
? |
||||||
|
合模力Clamping force |
kN |
5300 |
|||||
|
移動模板行程Moving mould-plate stroke |
mm |
830 |
|||||
|
大模厚?Max.Mould height |
Mm |
830 |
|||||
|
小模厚Min.Mould height |
mm |
330 |
|||||
|
拉桿有效間距?Space between tie-bars |
mm |
860*810 |
|||||
|
液壓頂出力Hydraulic ejector force |
kN |
181 |
|||||
|
液壓頂出行程?Hydraulic ejector stroke |
mm |
230 |
|||||
|
頂出點數Ejector number |
n |
17 |
|||||
|
其他Other |
? |
||||||
|
油泵壓力Pump pressure |
MPa |
16 |
|||||
|
普通電機/驅動功率?Motor/Driving power |
kW |
55/30*2 |
|||||
|
加熱功率?Heating capacity |
kW |
41.9 |
|||||
|
外形尺寸?Machine dimension |
m |
8.81*2.05*2.5 |
|||||
|
機器重量?Machine weight |
t |
22 |
|||||
|
油箱容積?Oil tank capacity |
L |
1156 |
|||||
